INSTANT TONES. SMALLER FOOTPRINT. SMALLER PRICE.
In
2016 we released Andy Timmons" signature overdrive, the AT — or as
everybody ended up calling it, "the @." It started in 2013 when Andy
bought a JHS Angry Charlie and made it his main lead channel, beating
out the distortion channels of the boutique amps he's known for. We met
at NAMM, discussed some ideas for his own version, and soon after, the
AT was born.

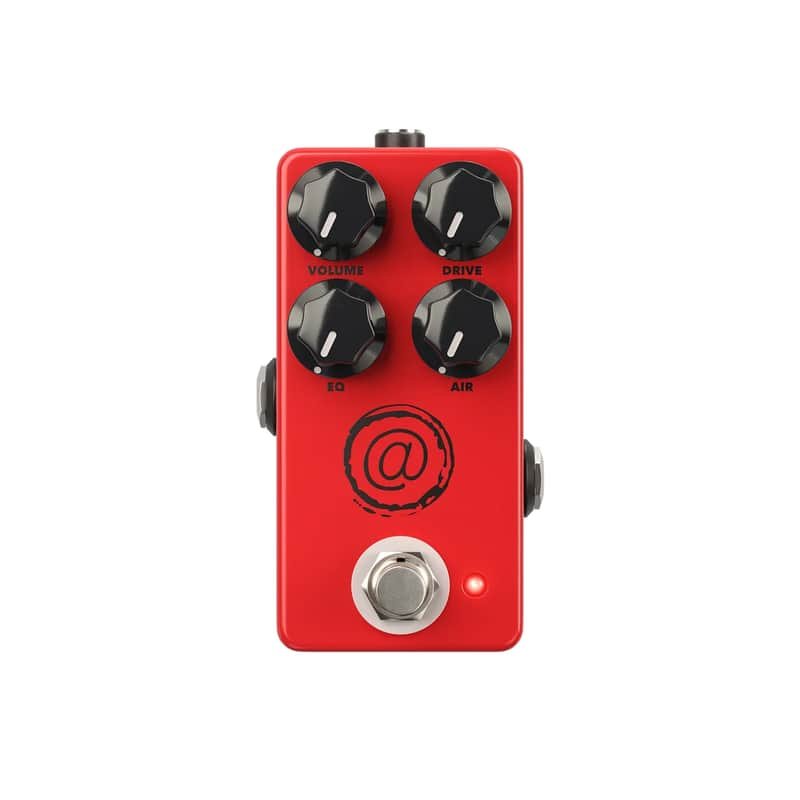

The AT Mini is the original V1 AT circuit,
permanently set in Andy's preferred 100-watt mode — the open, loud,
less-compressed voicing with the most volume and the most amp-like
crunch. No toggle. Just the setting the guy whose name is on the pedal
uses.
If you need the most authentic British distortion lead and
rhythm sound you can find — one that perfectly replicates the punch,
saturation, and unmistakable feeling of standing in front of a stack of
loud amplifiers — this is it.
WHAT'S DIFFERENT
This is the same exact circuit as the V1.
Same four knobs. Smaller box, smaller price.
FIRST: We put it in a new enclosure — a compact case that gives you back valuable board real estate.
SECOND: We removed the wattage toggle and set the voicing to 100 watts.
THAT'S IT: Volume, Drive, EQ, and Air all work exactly as they always have.
If
you want the 25-watt and 50-watt voicings, or the independent
footswitchable boost channel, that's the AT+. Still in the JHS Pedals
catalog. Still $219.
If you want Andy's tone with Andy's exact setting in a smaller footprint for $129, this is it.
CONTROLS
VOLUME – Controls the output volume.
DRIVE
– Controls the amount of drive and gain, just like a tube amp being
cranked at high volumes. Wide range from high-gain blues to thunderous
distortion.
EQ – A high pass filter that naturally brightens or darkens the overall tone of the pedal. Right is brighter, left is darker.
AIR
– Just like the presence knob on an amp, this lets you dial in the
perfect amount of high end for compatibility with any amp. Right is
brighter, left is darker.
JACKS
INPUT – 1/4" right jack.
OUTPUT – 1/4" left jack.
POWER – Requires 9VDC to 18VDC center negative power and consumes 10mA.
SPECS
- True bypass switching
- Four controls: Volume, Drive, EQ, Air
- Fixed 100-watt voicing
- 9VDC to 18VDC center negative, 10mA
- Assembled in Kansas City
THIS PEDAL MEASURES 1.96" X 3.93" X 1.21" AND CONSUMES 10mA. IT CAN BE SAFELY RUN ON 9 OR 18 VOLTS.
