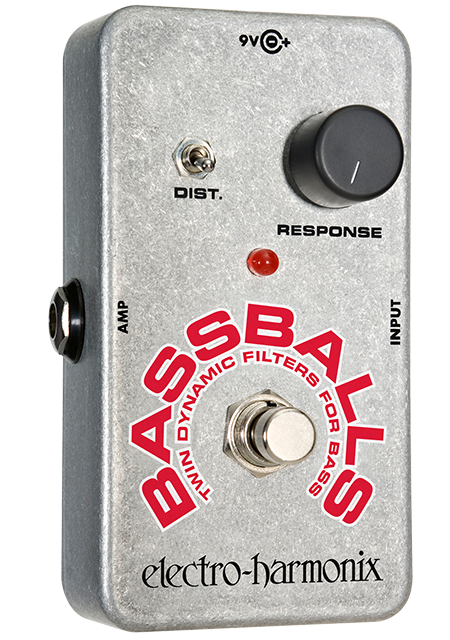

Not one, but two narrow filters sweep your tones
under control of the envelope, generating very unique vocal-like sounds.
A distortion switch enriches the harmonics. The response control varies
the sweep range determined by your attack. Not only designed for and
great on bass guitar, but also very funky on guitar.
Quick Specs
True bypass
Tough and compact die-cast chassis
9-volt battery included
Optional 96DC-200BI power supply available
Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h)
Dimensions in mm: 70 (w) x 115 (l) x 54 (h)
The range of the filters’ upward frequency sweep is set by the
interaction of instrument volume and the RESPONSE control. Both stronger
attacks and higher (clockwise) settings of the RESPONSE control
increase the sweep range. Low volume and low RESPONSE settings will
create little or no sweep and the Nano Bassballs will only provide a
small boost in its lowest frequencies.
In its upward position, the FUZZ switch introduces additional
harmonic enrichment that accentuates the filters’ action. The RESPONSE
control also serves as a volume control for the FUZZ, increasing in
volume in the clockwise direction.
The Status LED will light up when the Nano Bassballs is in effect
mode. When in True Bypass mode, the LED will be off. Use the FOOTSWITCH
to toggle between effect and True Bypass mode.
