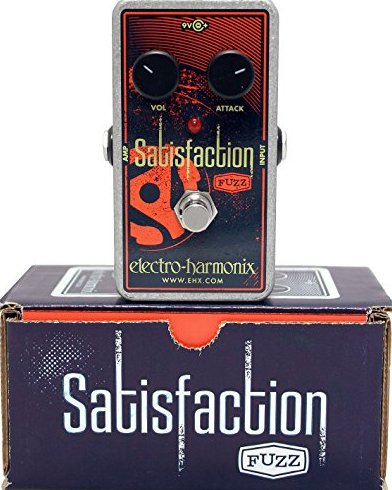

- Classic fuzztone
- True bypass for maximum signal path integrity
- Rugged die-cast package
- 9 Volt battery included
- 9.6DC-200 EHX power supply optional
- Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h)
- Dimensions in mm: 70 (w) x 115 (l) x 54 (h)
- CONTROLS –
ATTACK Knob – Controls the amount of input gain and distortion. As
you turn this knob clockwise, the SATISFACTION ranges from mild drive to
VOL Knob – Sets the output level of the SATISFACTION.
FOOTSWITCH and LED – The Footswitch selects whether the SATISFACTION
is engaged or in true bypass mode. When the effect is engaged, the LED
INPUT Jack – This ¼” jack is the audio input for the SATISFACTION. The input impedance is 50kOhm.
AMP Jack – This ¼” jack is the audio output from the SATISFACTION.
The output impedance depends on the VOLUME setting, ranging from 100Ohm
