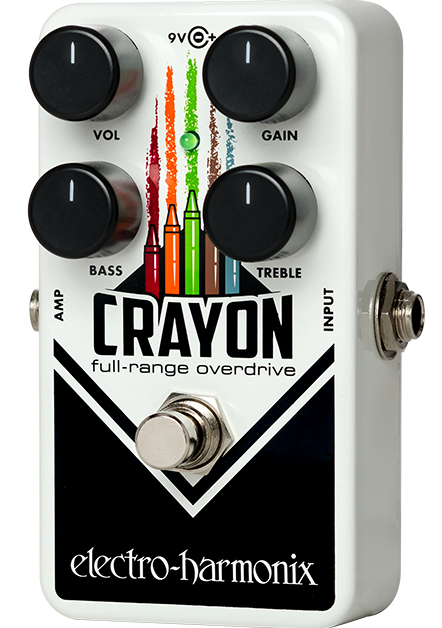

The Crayon is a versatile overdrive with independent Bass and Treble
controls and an open frequency range that provides players with a
musical alternative to customary mid-focused overdrive pedals. It
delivers a range of sounds going from a suggestion of dirt to full-on
distortion and is equally impressive all by itself or when driving
another overdrive pedal.
Quick Specs
- Full-range overdrive with a lush, rich, warm tone
- Independent Bass and Treble controls
- True Bypass for maximum signal path integrity
- Compact pedalboard-ready pedal
- Ships with a 9V battery
- Dimensions in inches: 2.75 (w) x 4.5 (l) x 2.1 (h)
- CONTROLS -
GAIN Knob – Controls the amount of input gain. As you turn GAIN
clockwise, the overdrive ranges from just a touch of grit, in the fully
counter-clockwise position, to classic distortion, in the fully
clockwise setting.
TREBLE Knob – As you turn TREBLE clockwise, the overdrive’s high end
is accentuated, making your tone brighter. Turn TREBLE counter-clockwise
for a darker sound.
BASS Knob – As you turn BASS clockwise, the low end is boosted. Turn BASS counter-clockwise to reduce low end.
VOL Knob – Sets the output level of the Crayon. As VOL is turned clockwise, the output volume increases.
FOOTSWITCH and LED – The Footswitch selects whether the Crayon is
engaged or in true-bypass mode. When the effect is engaged, the LED is
lit.
INPUT Jack – This ¼” jack is the audio input for the Crayon. The input impedance is 315k Ohm.
AMP Jack – This ¼” jack is the audio output from the Crayon. The output impedance is 50 Ohm.
