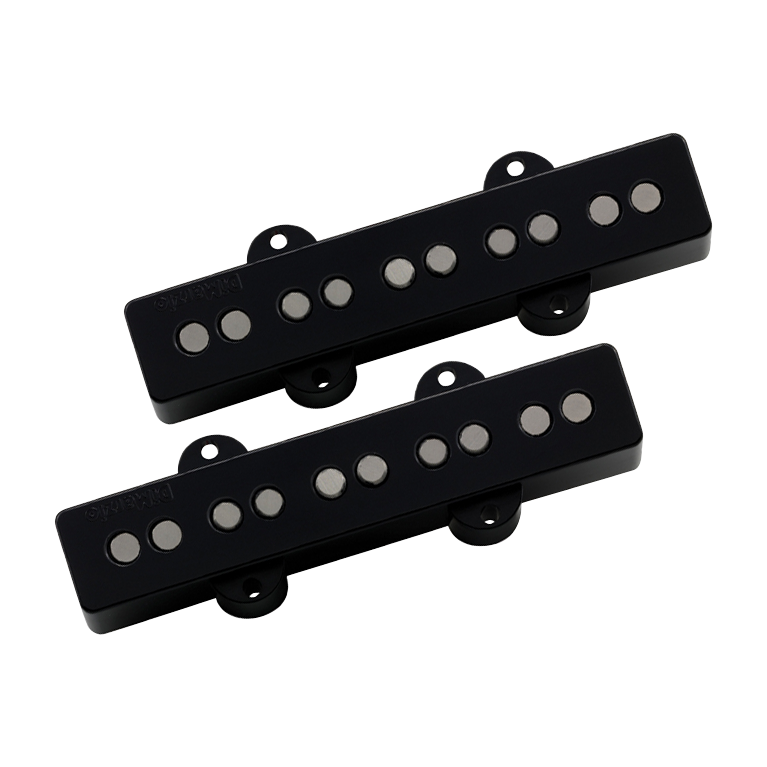

The Ultra Jazz 5 has many of
the same qualities as the 4-string Ultra Jazz, but it’s been
specifically designed to meet the demands of 5-string basses. By means
of a unique application of Virtual Vintage technology, the Ultra Jazz 5
both cancels hum and produces balanced power and frequency response
across all five strings. Although designed for passive operation, the
Ultra Jazz 5 also performs excellently with many active onboard
preamps.
The appearance of the Ultra Jazz 5 is traditional, but
the wide dynamic range and frequency response of the hybrid magnetic
structure allows both vintage and modern sounds. Hum-cancellation is
achieved by using Virtual Vintage technology to suppress 60-cycle
noise, with one coil sensing the “B”, “E”, and “A” strings, and the
other coil sensing the “D” and “G” strings. While the basic sound of
the pickup is similar to the 4-string Ultra Jazz™, it's been adjusted
to keep the tonality and response as consistent as possible from the
“B” string to the “G” string. Particular care was taken to keep the low
“B” string big-sounding without becoming muddy.
Recommended For: Neck and bridge position. Important Note:
The cover dimensions of the Ultra Jazz 5 are not the same as 5-string
Fender Jazz Bass. The Ultra Jazz 5 therefore cannot be installed as
direct replacements on these basses without modification.
Quick Connect: No.
Wiring: 2 Conductor
Magnet: Alnico 5 & Ceramic
Resistance: 16.6 Kohm & 16.9 Kohm
Year of Introduction: 2001
Color: Black
Pole Pieces: Nickel
